Screw conveyor

Reliable chip transport with minimal space requirements

Screw conveyors are the ideal solution for transporting chips and bulk materials in industry. Thanks to their compact design, they enable a smooth material flow even in confined spaces. They ensure metered and controlled conveying - horizontally inclined or vertically inclined.

Find out more

Metal processing

◆

Machining

◆

Recycling

◆

Mechanical engineering

◆

Filter technology

Overview

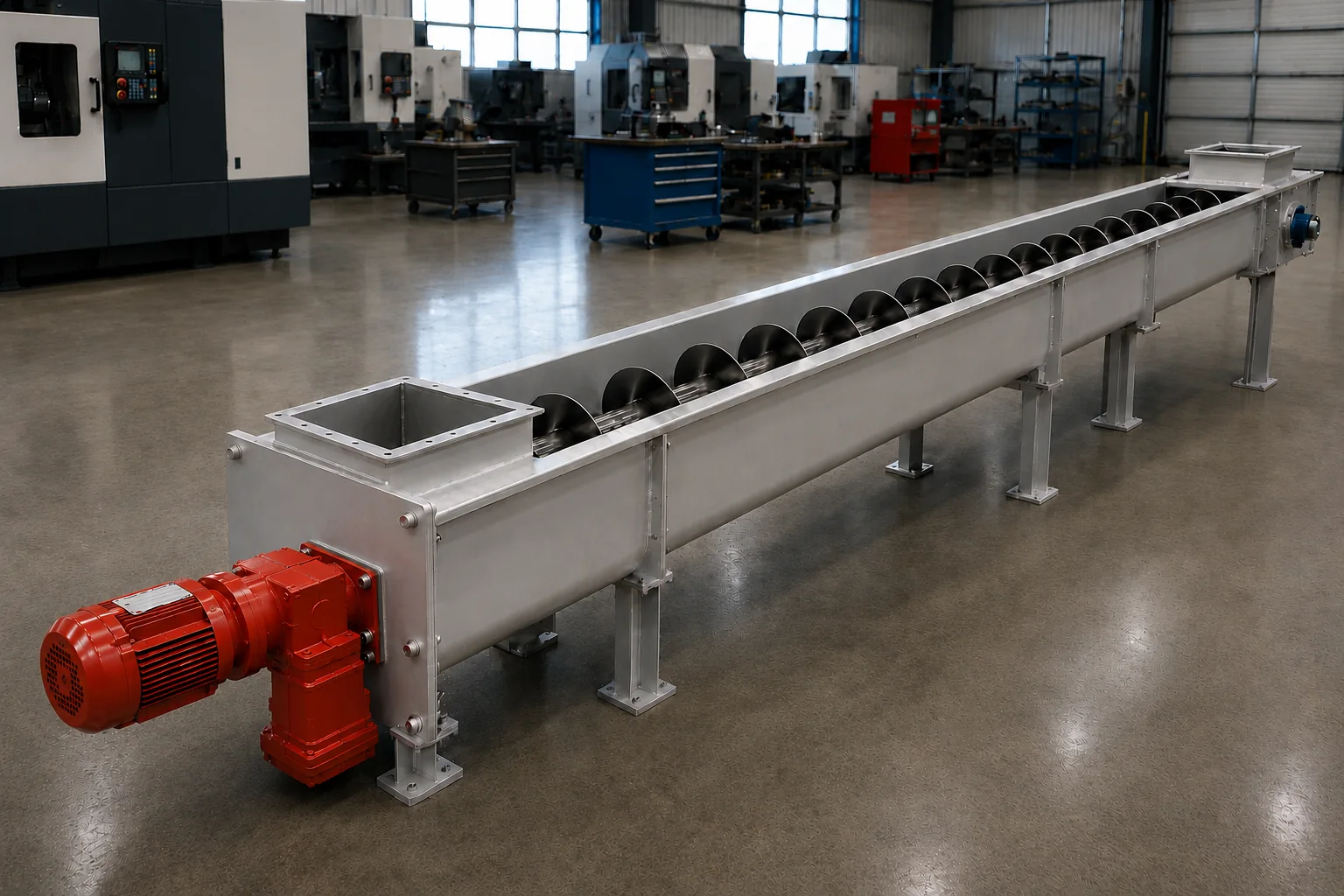

The screw conveyor from KÖBO ECO>PROCESS

Whether fine metal chips or filter cake - with a screw conveyor, you can transport your material reliably and in a controlled manner. This compact conveyor technology really comes into its own where space is at a premium. Thanks to its robust design, it can also cope with demanding industrial environments and ensures a smooth material flow, whether horizontal, inclined or vertical.

Request now

How it works

How does our screw conveyor work?

Screw conveyors work according to the Archimedean screw principle. A rotating screw conveyor moves the material within a trough or pipe from one point to another. This technology enables even and metered transportation of bulk materials such as chips or filter cakes. The design is particularly space-saving and can be flexibly adapted to different production environments.

The bulk material is filled into the trough or pipe.

The screw conveyor begins to rotate and moves the material along its blades.

The geared motor ensures even and reliable conveying.

Depending on the design, the material is transported horizontally or vertically inclined.

At the discharge point, the conveyed material is sent for further processing or disposal.

Your advantages

Product advantages of our screw conveyors

➔

Space-saving: Compact design enables use in confined production environments.

➔

Efficient and controllable: continuous and variable material flow with adjustable speed (frequency converter operation possible).

➔

Robust and durable: High-quality materials ensure durability and low maintenance even under extreme conditions.

➔

Versatile: Suitable for various types of chips and bulk materials.

➔

Flexible in use: transport in all directions (horizontal, vertical, inclined).

Application

Typical areas of application for our screw conveyors

➔

Chip container emptying: Efficient removal of chips from chip bunkers for further processing or disposal.

➔

Suction locks & return pump stations: Integration into pneumatic suction systems or return pump stations for controlled material conveying.

➔

Intermediate conveying of chips: Transport of short and long chips between machines or processing stations.

➔

Discharge from chip bunkers: Use of a screw shaft with continuous or progressive pitch for even material flow.

➔

Filter cake discharge after coolant filtration: Reliable removal of filter cake after coolant cleaning to ensure a clean process.

Specifications

Technical data

Conveyed goods

Short chips, bulk materials

Width

Ø 80-500 mm

Length

up to 10 m

Drive type

Gear motor

Type of funding

Horizontal, inclined or vertical

Screw conveyors - Why you should rely on this solution

Optimum material flow

Continuous and even conveying prevents blockages and production interruptions. This ensures greater process reliability and reduces unplanned downtime.

Space-saving design

Screw conveyors require little space and can be flexibly integrated into existing production systems. This makes them ideal for use in confined working environments.

Energy-efficient promotion

Direct material transport reduces energy consumption compared to pneumatic or other mechanical conveyor systems. This lowers operating costs and makes the process more sustainable.

Low noise development

Compared to other conveyor systems, screw conveyors are particularly quiet, which reduces noise pollution in production and creates a more pleasant working environment.

Minimal maintenance effort

Thanks to fewer moving parts and a robust design, screw conveyors are extremely low-maintenance. This reduces maintenance requirements and lowers long-term costs.

Dust and dirt-free transportation

The closed system keeps the conveyed material inside the trough, which minimizes contamination of the production environment and reduces the amount of cleaning required.
