Vacuum belt filter

for coolant standard filtration

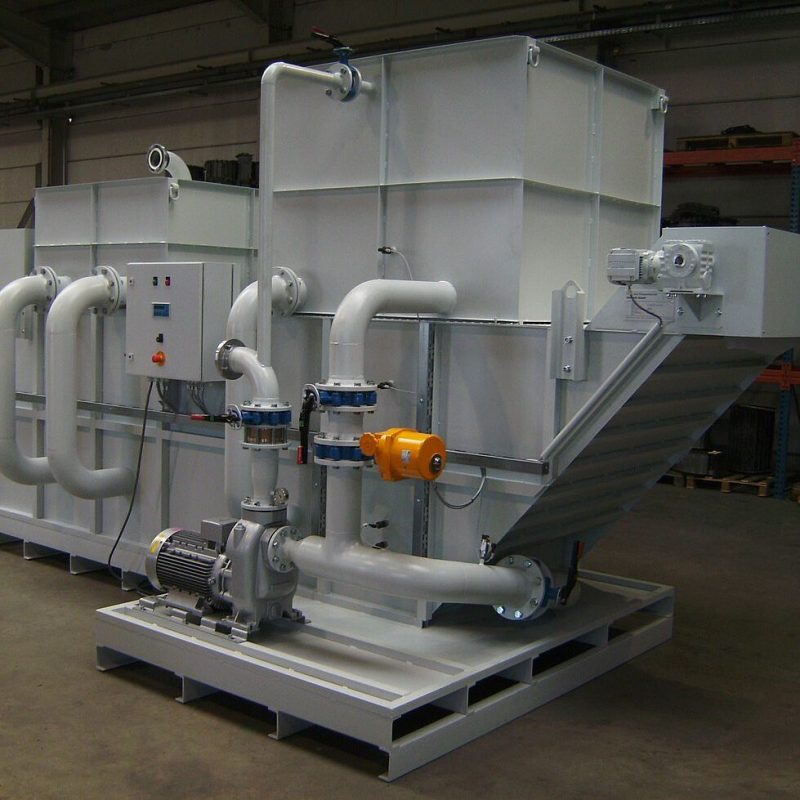

The vacuum belt filter (VBF) is a fully automatic cooling lubricant filter that continuously receives contaminated cooling lubricant from the production return flow.

Vacuum belt filter

The vacuum belt filter (VBF) is a fully automatic cooling lubricant filter that continuously receives contaminated cooling lubricant from the production return flow. Filter/system pumps connected to the lower suction chamber suck the cooling lubricant through the filter medium, clean it and return it to the production supply. The filtered dirt cake is discharged for chip disposal.

Structure

Upper dirt chamber for collecting the cooling lubricant (CL) contaminated with dirt particles
Horizontal filter belt support to separate the upper dirt chamber from the lower filtrate suction chamber
Lower filtrate extraction chamber (vacuum chamber) for collecting the cleaned cooling lubricant with connection to the filter/system pump(s)
Filter medium: Circumferential filter tape or fiber fleece
Modular system: short assembly and set-up times

Functionality

Upper dirt chamber for collecting the cooling lubricant (CL) contaminated with dirt particles
Horizontal filter belt support to separate the upper dirt chamber from the lower filtrate suction chamber
Lower filtrate extraction chamber (vacuum chamber) for collecting the cleaned cooling lubricant with connection to the filter/system pump(s)
Filter medium: Circumferential filter tape or fiber fleece
Modular system: short assembly and set-up times
